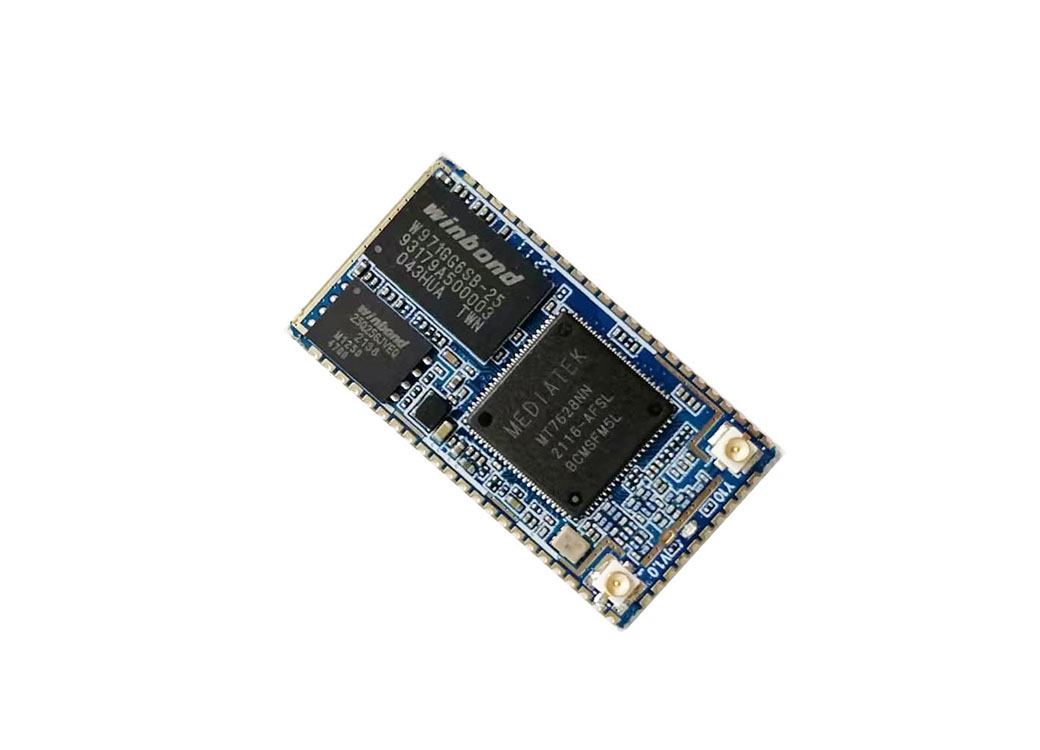

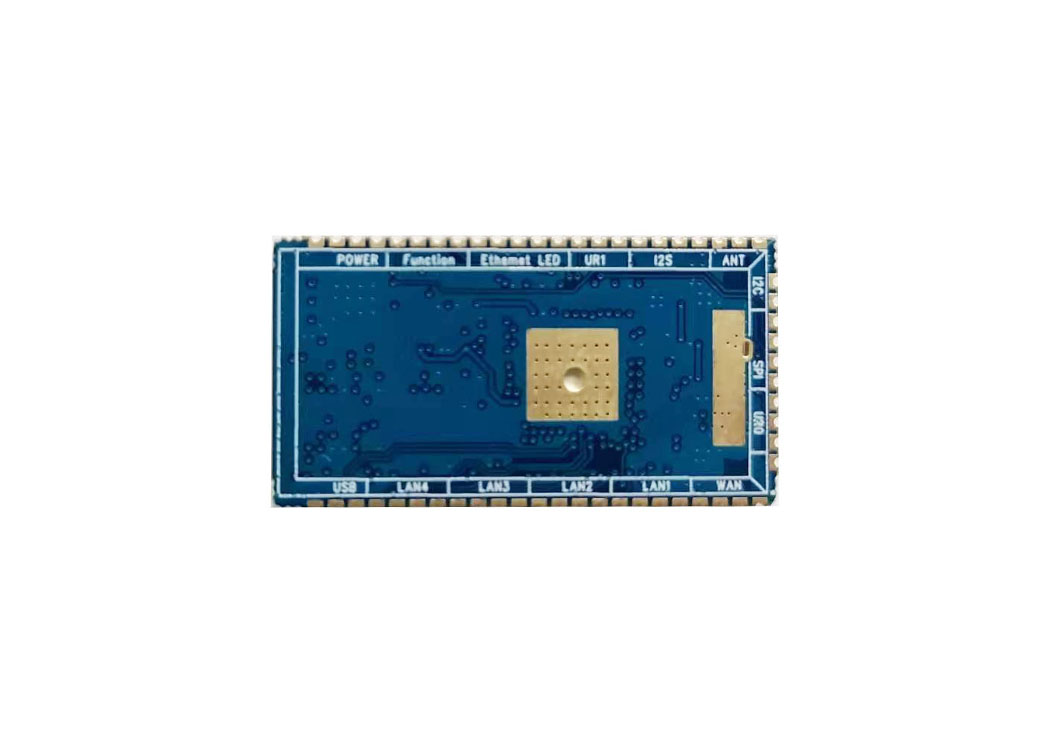

PGB-Y10 is 300Mbps 11N wireless module with super small size and sufficient pins can expand to various IoT items, such as USB WIFI Camera, IoT AP WiFI, Building Automation, Smart Robot,Smart Lighting,Smart Plug etc.
Interface
l Ethernet Port x 5
l I2C x 1
l PCM x 1
l I2S x 1
l PWM x 1
l SPI x 1
l UART x 1
l GPIO x 8
Applications
l USB WIFI Camera
l IOT AP Wi-Fi
l 3G/4G Wi-Fi router
l Repeater Wi-Fi
l Building Automation
l Home Automation
l Smart Robot
l Smart Toys
l Smart Lighting
l Smart Plug
Hardware |
CPU | MT7628 MIPS 580MHz |
Flash | 16MB |
RAM | 128MB DDR2 |
Antenna | IPEX Connector x 2 |
Input Voltage | 3.3V |
Dimension (L×W) | 35.2mm x 18.7mm |
Package | SMD |
Interface | Ethernet Port x 5 I2C x 1 PCM x 1 I2S x 1 PWM x 1 SPI x 1 UART x 1 GPIO x 8 |
Software |
OS | Open WRT 14.07 |
Wireless Standard | IEEE802.11b/g/n |
Frequency Range | 2.4GHz |
Wireless Rate | 300Mbps |
Data Rates | 11b :1,2,5.5,11Mbps 11g :6,9,12,18,24,36,48,54Mbps 11n : 144Mbps @ HT20 300Mbps @ HT40 |
Receiver Sensitivity | HT40 MCS7 : -67dBm@10% PER(MCS7) HT20 MCS7 : -73dBm@10% PER(MCS7) 54M : -76dBm@10% PER 11M : -91dBm@ 8% PER |
Modulation Technique | 802.11 Legacy b/g DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
Wireless Security | WPA/WPA2, WEP, TKIP, AES |
Transmit Power | 11n : 15dBm@HT40 MCS7 15dBm@HT20 MCS7 IEEE802.11g : 16dBm IEEE802.11b : 18dBm |
Work Mode | Router/AP/Repeater |
