Description

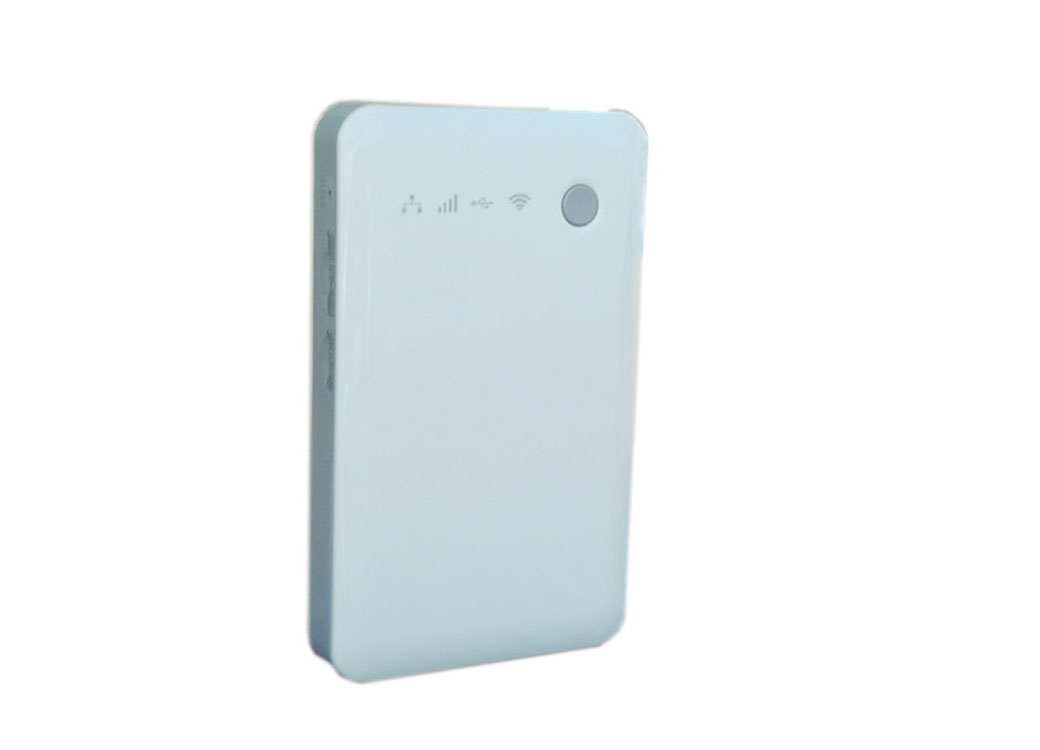

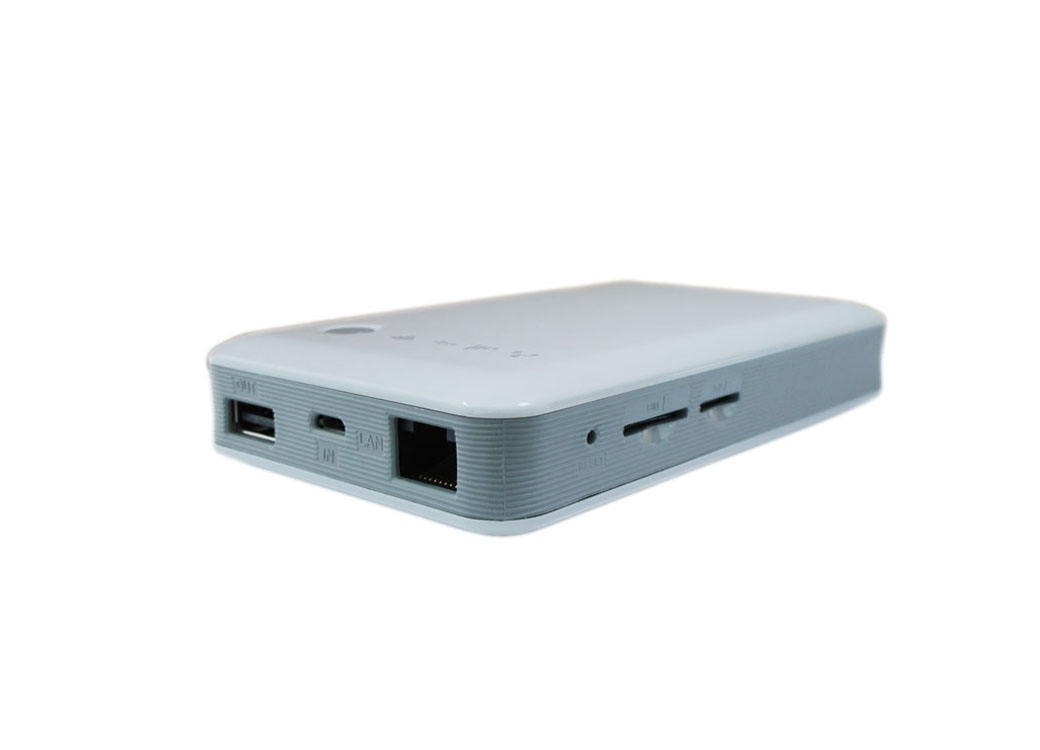

PGB-C2 is IEEE802.11AC dual band portable LTE Wireless Router wireless speed up to 1200Mbps support AP,Repeater work mode, with quick charge Power bank function, can work as online player,offline APP promote,the SD card can expand to 32G, support download and upload document .This device is long standby design with Built-in 10000mAh battery very ideal for outdoor use and Car / Bus WiFi share use.
Features
l11AC Dual band 2.4Ghz + 5.8Ghz
lQuick Charge Power bank with Type-C USB connector
l1200Mbps wireless speed support 30 people simultaneously use
lAPP(APK),based on Dlan,Online Player,Download & upload
lBuilt-in 10000mAh Polymer Battery,Super Standby
lSD card expandable up to 32Gb
lPre-load Open-WRT system
Platform |
CPU | MT7628AN + MT7613BEN |
WiFi | 2.4Ghz + 5.8Ghz, IEEE 802.11b/g/n/ac |
Technical |
Flash | 16M |
RAM | 128M |
Channel | 1-13 channel |
Transfer speed | 1200Mbps |
Sensitivity | 11Mbps: ≤-90dBm 54 Mbps: ≤-72dBm
HT20 QMCS7: ≤-69dBm
HT40 MCS7: ≤-66dBm |
LTE module ( Optional ) |
RJ45 | 1 * 10/100MAdaptive WAN / LAN port (Auto MDI / MDIX) |
Antenna | Internal Antenna |
PCIe connector | Support |
Button | Power/ Reset |
Micro SD | Up to 32GB |
SIM | Micro SIM |
USB | 1 * USB 2.0, 1 * Type-C |
Power bank | Built-in 10000mAh Polymer battery |
Quick Charge | 5-12V,2A Input / Output |
Software |
System | Open-WRT |
Security modes | Open/ WEP/ WPA-PSK/ WPA2-PSK |
Environment |
Storage Temperature | -40˚C～80˚C |
Operate Temperature | -20˚C～70˚C |
Storage Humidity | 5% RH to 95% RH (non-condensing) |
