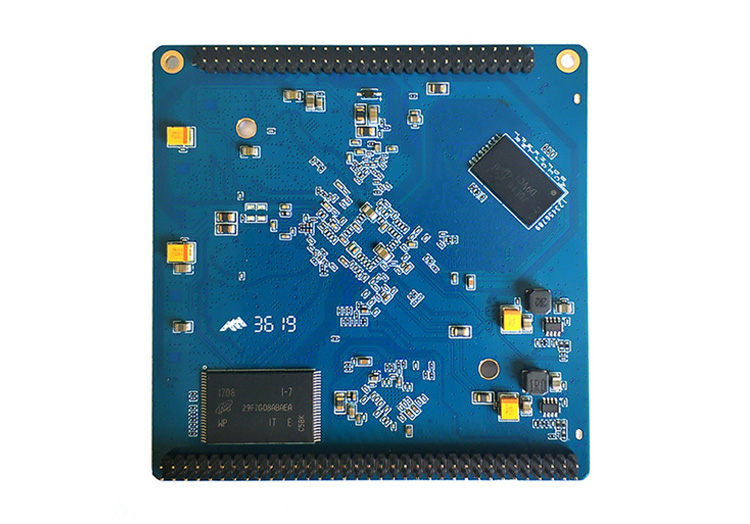

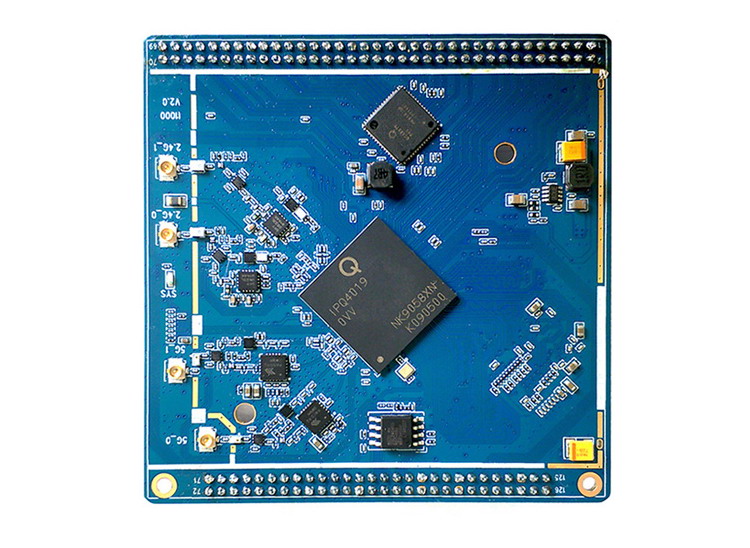

I1000 is Qualcomm IPQ4019/ 4029 chipset based dualband 11AC wifi router module, comply with IEEE 802.11a/b/g/n/ac Wave 2 protocol, wireless speed upto 1200Mbps, I1000 has various port 5 * Gigabit Ethernet Port,2 * SPI,2 * UART,1 * SDIO,1 * JTAG etc..., with PH2.0 connectors can work as a fantastic embedded board expand to other board.

● Preload OpenWRT OS

● Dualband Max. 1200Mbps

● Support 3G/4G modem PCIe connector

● Support Wired & 3G/4G/5G wireless network load balancing

● Support USB expand storage

● Support VPN ,PPTP,L2TP

● Dynamic IP /Static,IP/PPPoE ,PPTP/L2TP/BigPond

● Support TFTP,web uploading firmware
