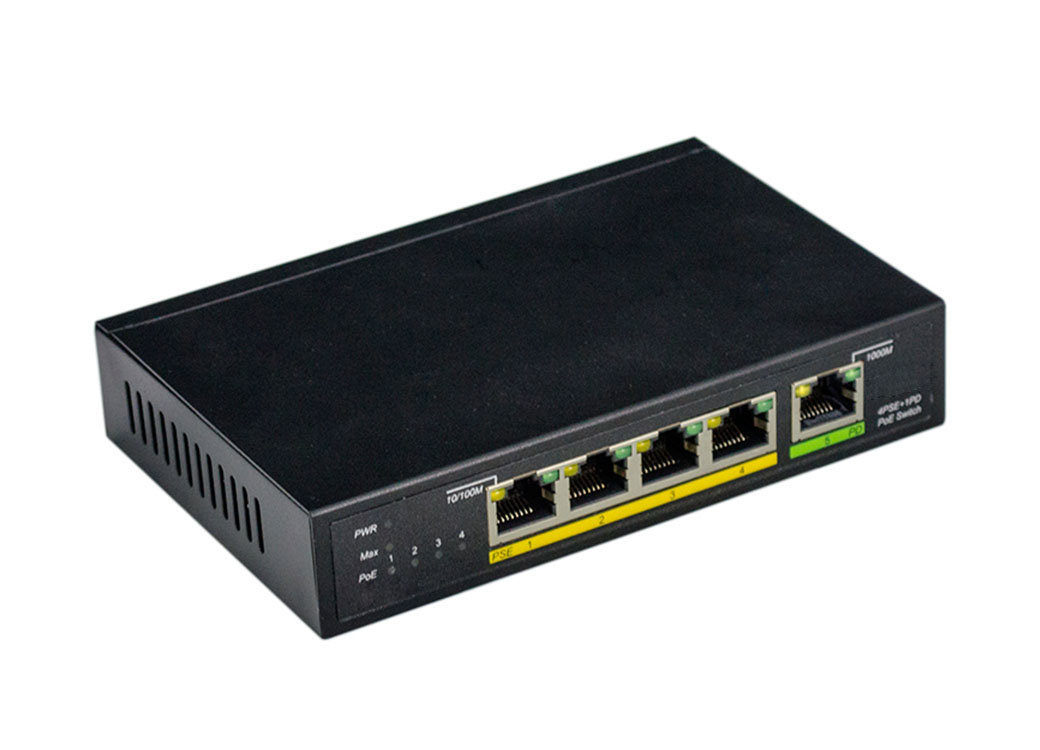

OMY-GS305PD is 5-Port 10/100/1000Mbps auto-negotiation RJ45 Port. Among which, port1~4 is PSE port, support 32W output. Port 5 is PD port,support 60W input. OMY-GS305PD Power supply support external and PoE Power Supply.

OMY-GS305PD is easy to install and don’t need to configuration. With outstanding performance and quality, the 5-port 10/100/1000Mbps desktop PoE switch is an ideal choice for expanding your home or office network.

Interface information

•    ● 5*10/100/1000Mbps RJ45 Ports

•    ● 4*PSE Ports (Port1~4)

•    ● 1*60W PoE Input Port (Port5)

PoE(Power over Ethernet)

•    ● Complies with IEEE802.3af/at Power over Ethernet

•    ● Supports PoE Power up to 32W for each PoE port

•    ● Auto detect power device

•    ● PoE Overload Alarm LED

•    ● Remote power and Data feeding up to100m

Switch

•    ● Flow Control for Full Duplex operation and back pressure for Half Duplex Operation

•    ● 2K MAC address, automatic address learning and address aging

•    ● Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

PoE Features

OMY-GS305PD can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

PoE Power Usage Display

OMY-GS305PD helps users to monitor current status of PoE power usage easily and efficiently by its intelligent PoE Management feature of LED indication, there are one orange LED named “max” located on left side of the front panel. WhenPort 1-4 output is >= 80%, the LED will be lighted up, when Port 1-4 output is> = 100%; the LED will blink to notify customers for better PoE allocation. If PoE Power consumption over 100%, the system will cut off the power of the lowest-priority port. Priority (port 1 > port 2 >port 3 > port 4).
